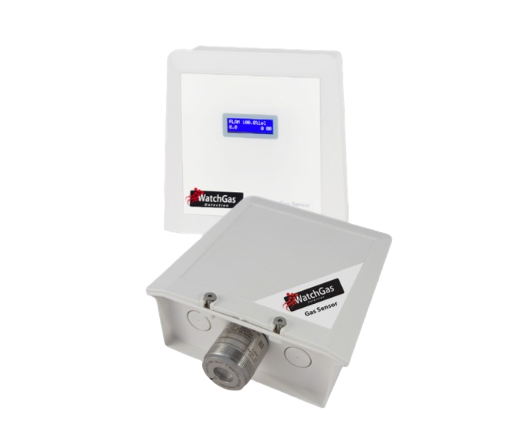

15J(win) / 30J(win)
The 30J enclosure has been designed to allow quick and easy access to its interior by adjustment of two allen screws, this factor is a major consideration when large system service and calibrations are being carried out.
- Robust and weatherproof
- Addressable or stand alone
Description
The 30J enclosure has been designed to allow quick and easy access to its interior by adjustment of two allen screws, this factor is a major consideration when large system service and calibrations are being carried out. The detector is robust and weather-proof with improved response times due to the four mounting spacers allowing increased air movement around the detector these spacers also improve the mounting of the unit particularly on circular pillars typically found in parking lots. Standard 4~20mA signaling with CANbus address enables the sensors to be networked via the WatchGas Combi control system or customer preferred monitoring system.
Product information
- Robust and weatherproof
- Flexible output options
- Addressable or stand alone
- Hyper Terminal communications RS232 line data and set up with 232 adapter
| Power Supply | 15 to 30vDC 24v nominal |
| Outputs | 3 wire - 4~20mA 4 wire - CAN bus Relays (optional) Low alarm S .P.C.O High alarm S .P.C.O Fault alarm S .P.C.O / overrange Rating 0.5A @30vDC Inhibit option during servicing |
| Logging | Addressable sensors only Intervals - one minute to one hour Storage - 2,880 readings |
| Temperature | -15˚C to 55˚C |
| Humidity | Pellistor-catalytic : 0 - 99% RH non condensing Electrochemical : 5 - 95% RH non condensing Infrared: 0 - 95% RH non condensing |
-
Single gas
-
Cost effective

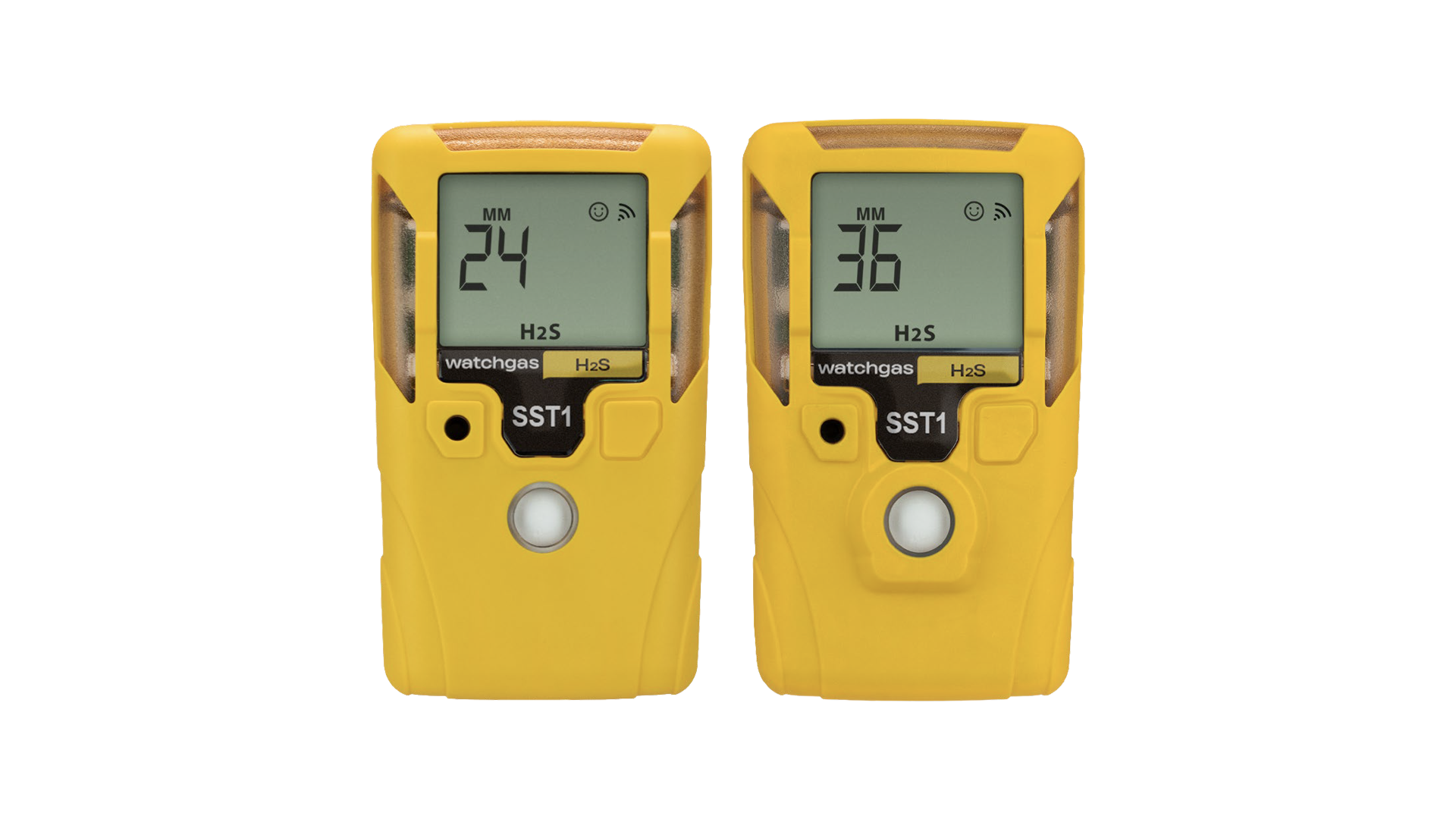

SST1/SST1E 2 & 3 Year Models
The WatchGas SST1/SST1E maintenance-free single gas detectors deliver reliable protection with zero maintenance and low cost of ownership. Compact, rugged, and always on, they provide continuous operation for 2 or 3 years without charging, calibration, or sensor replacement.
-
Single gas
-
Serviceable

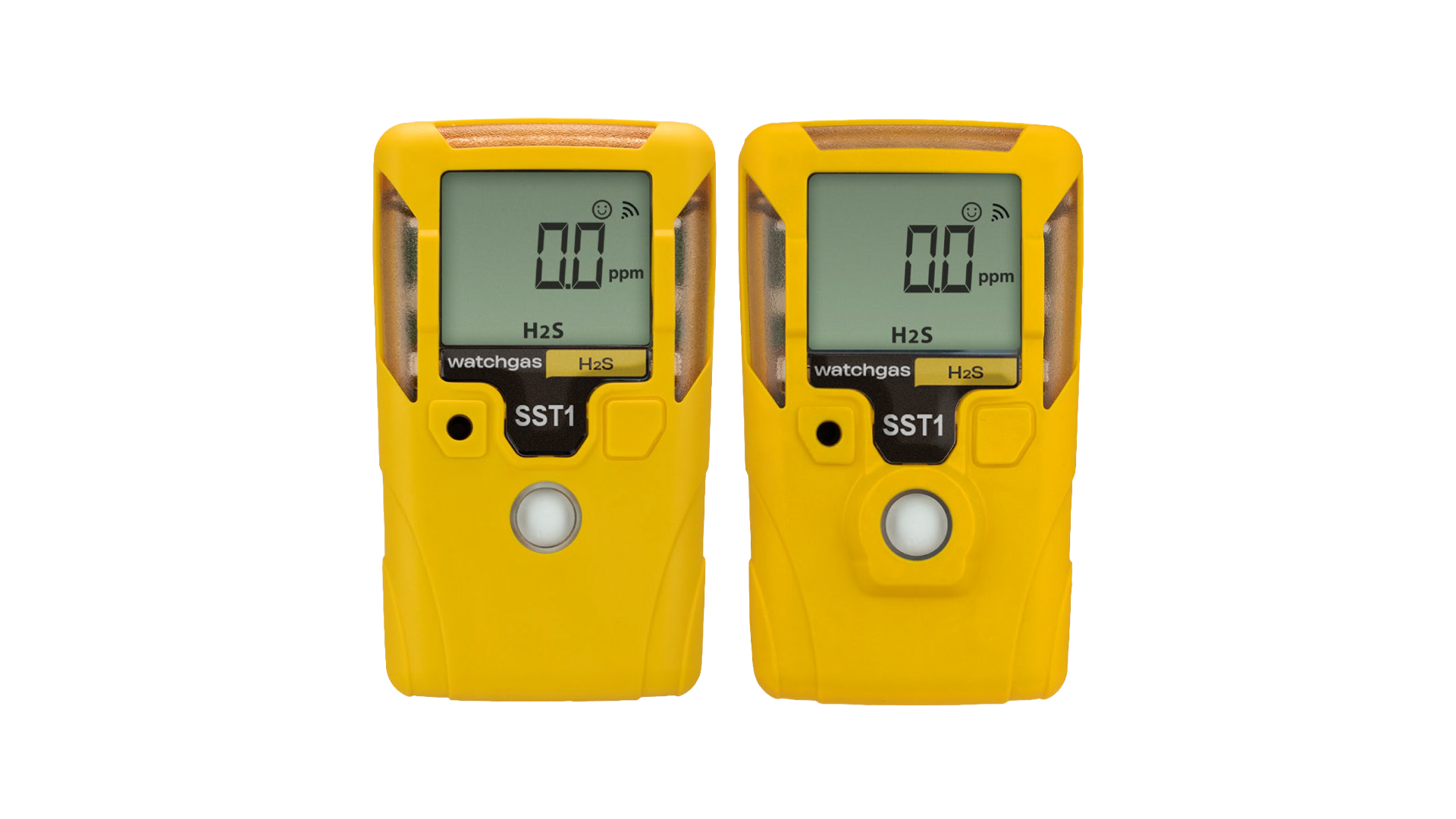

SST1/SST1E Serviceable Models
WatchGas SST1/SST1E serviceable single gas detectors combine compact design, long battery life, and low operating costs with the flexibility of replaceable sensors and batteries. Designed for industrial operations, they provide reliable protection across a wide range of gas applications.
-
1 to 5-Gas Detection
-
Compact & Lightweight
5-Gas SST5
Meet the new WatchGas SST5 - the next generation of compact multi-gas detection. Designed for maximum comfort and reliable protection, the SST5 delivers powerful 1 to 5-gas monitoring in an ultra-lightweight design with fast sensor response, long runtime, and industry-leading visibility and alarm performance.
