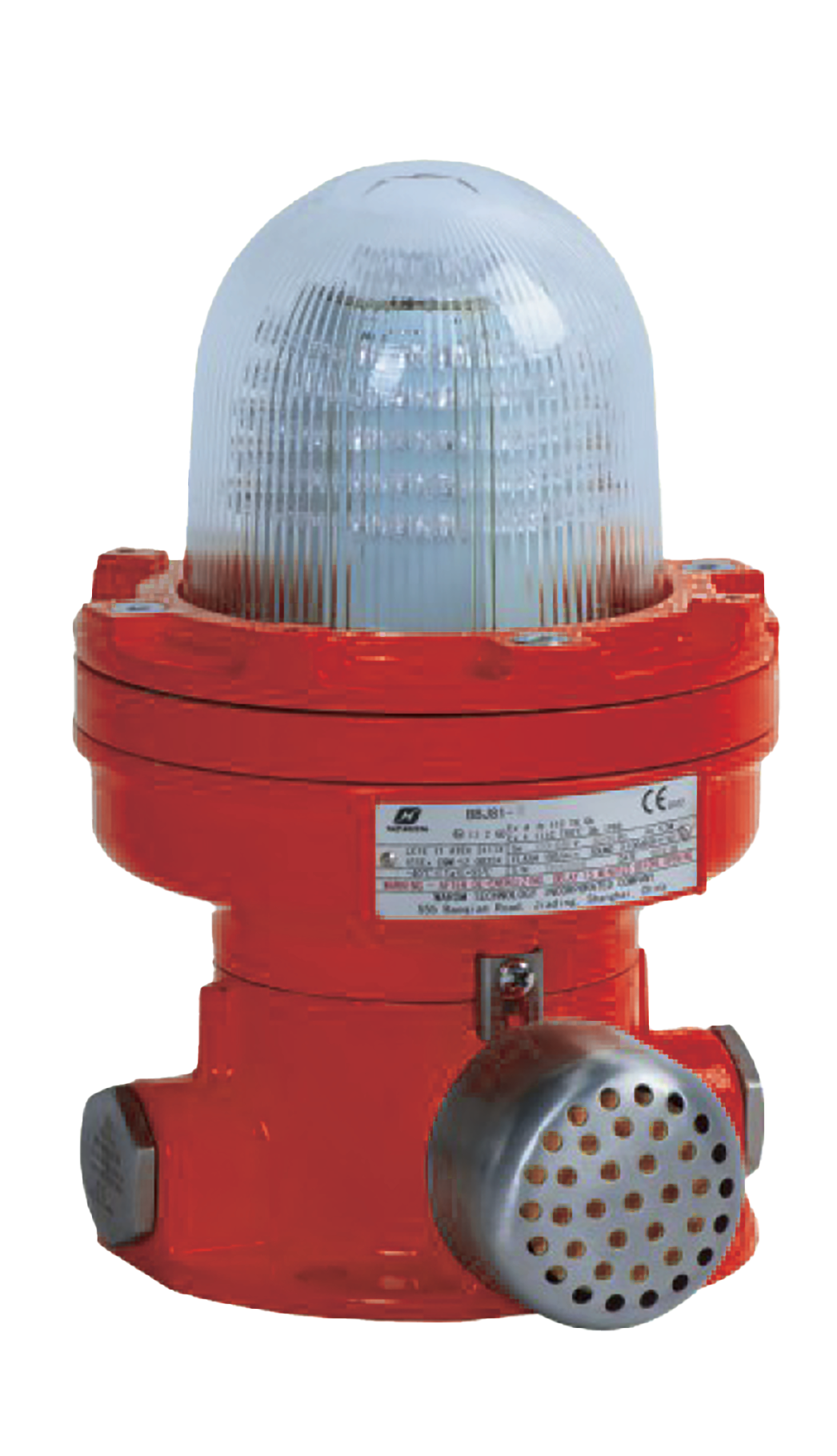

ATEX Beacon Sounder
The explosion-proof ATEX Beacon is designed to replace existing ATEX signal towers and other optical ATEX signaling solutions. With the loudest audio and brightest visual alarms, your best Beacon choice for your application.
- Appropriate for many applications because of 10-24V DC power supply
- Low power consumption
- Lamp colours: red, yellow, green
- IP66 (67 optional)
- Explosion-proof
- User-friendly
Description
The ATEX Beacon Sounder explosion-proof audio and visual caution spotlight fittings can be used in Zone 1 and Zone 2 hazardous areas (explosive gas atmospheres except for coal mine) where IIA, IIB, and IIC explosive gas or vapor presents with T1 to T6 classification, and Zone 21 and Zone 22 hazardous areas with combustible dust atmosphere. It’s been widely used for accident signal alarms or signal indications in areas such as chemical plants, stockrooms, fueling stations, oil drilling platforms, oil industries, etc., where it presents a 10-24V DC/AC circuit.
Product information
- Explosion protection to:
-CENELEC
-IEC
-NEC - Ultra-bright LED lamp
- low power consumption and long service life
- Lamp colors: red, blue, green
- Enclosure in Copper-free Aluminium Alloy, powder coated surface RAL 3001
- Can be used in: Zone 1 and Zone 2, Zone 21 and Zone 22
| Explosion protection | |
| Global (IECEx) | IECEx CQM 12.0035X |
| Gas and dust | Ex d ib IIC T6 Gb Ex t IIIC T80°C Db IP66 |
| Gas and dust | II 2 G Ex d ib IIC T6 Gb II 2 D Ex t IIIC T80°C Db IP66 IECEx; ATEX; CU-TR |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31 |
| Material | |
| Enclosure | Copper-free Aluminium Alloy, powder coated surface, (RAL3001) |
| Transparent cover | Toughened glass, stands 4J impact |
| Exposed fastener | Stainless steel |
| Rated voltage | 10~24V DC/AC |
| Lamp | |
| Lamp specification | LED |
| Lamp power (W) | 5W |
| Lamp colour | Red, yellow, green |
| Flash frequency | 70 (times/min) |
| Sound intensity | 100-120dB (R=1m) |
| Earthing protection | M5 (internal & external earth bolts) |
| Degree of protection | IP66, IP67 (optional) |
| Ambient temperature | -40°C~+55°C |

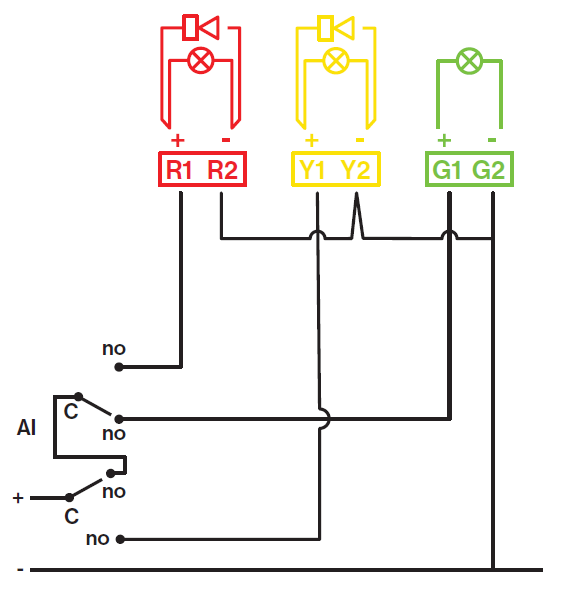

| Terminal | 3 x 1.5~2.5mm² (L+N+PE) |
| Cable entries | 3 x M25 x 1.5 plugs |
| Cable gland (optional) | DQM-II (Ex d) or DQM-III (Ex d) is recommended. Please see P7/20-31. |
-
