POLI mono docking station

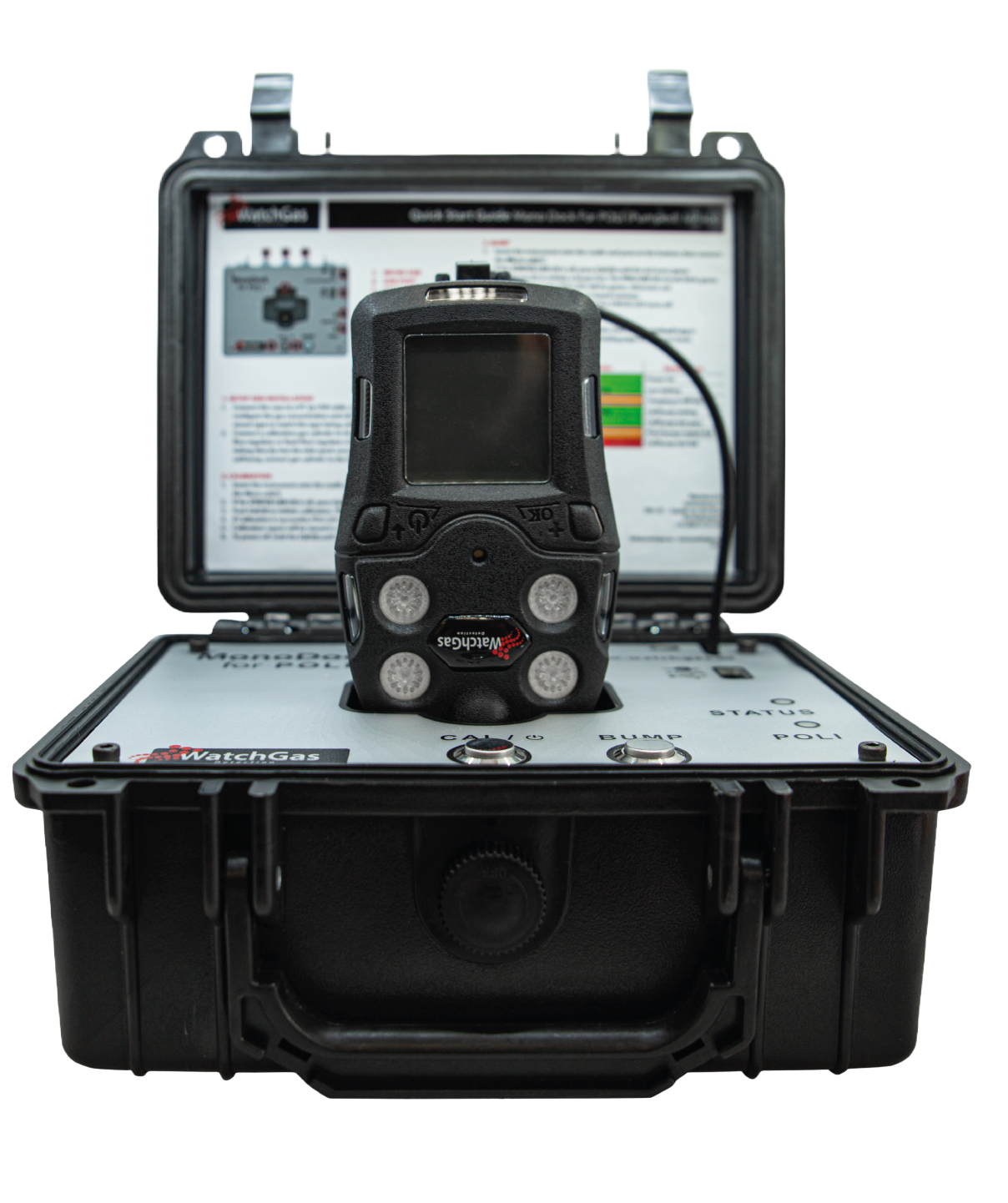

The POLI MonoDock (MP400T) is a docking and calibration station for the POLI Multi-Gas Detectors. The MonoDock for the POLI pumped version provides fast and easy calibration or bump testing: just place the POLI in the bay, connect the cable, and push start.
- Simple & Fast: One-button operation for either bump test or calibration;
- High Capacity: 2000 calibration or bump record storage in reliable FLASH Memory;
- Portable: Battery power for up to 1000 bump tests;
Description
All calibrations and bump test results are stored in onboard memory as a compliance record downloadable separate from the instruments themselves. The docking station is designed to operate with the four commonly measured gases Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Methane (CH4), plus Isobutylene for PID bump/calibration. The MonoDock has rechargeable batteries and is portable for remote use.
Product information
- Simple & Fast: One-button operation for either bump test or calibration;
- High Capacity: 2000 calibration or bump record storage in reliable FLASH Memory;
- Convenient: Records can be downloaded without the POLI in place;
- Portable: Battery power for up to 1000 bump tests;
- Robust: All-in-one hard case.
| Size | 23.5cm x 19.0cm x 10.7cm |
| Weight | 2.0kg |
| Number of Weights | One (1) POLI Pump Monitor |
| Battery | Rechargeable Litium battery, up to 1000 bump tests on a single charge |
| Temperature | 0°C to 50°C |
| Humidity | 5% ~ 95% RH (Non-Condensing) |
| Event Log | 2000 calibration or bump records |
| Power & Communications Connection | USB (type A) |
| Test Gas Supply | Cylinder(s) and regulator(s) (not included) outside MonoDock Demand flow regulator(s) required Built-in pump for air or test gas |
| Gas Connections | Quick-connects for 6-mm o.d. tubing; 2test gas inlets fir cakuvratuib/pump; Air inlet for zeroing |
| Calibration Gases | Gas mix with up to 4 gases: - Oxygen (O2) - Carbon Monoxide (CO) - Hydrogen Sulfide (H2S) - Flammable Gases (CH4, C3H8, C5H12, etc) - Isobutylene (for PID) |
| Safety Certifications | For use in non-hazardous locations |
| Warranty | 1 year |
|
